As well as four white brightness outputs the ML4 also offers a white flashing mode as well as two red outputs and a red flashing modes. The red light is good for preserving natural night vision, map reading and animal watching amongst other uses. It is powered by a single 14500 lithium-ion battery which is installed by twisting the base of the lantern to remove the battery cover and inserting the negative end of the battery first before fully twisting the base back tight.

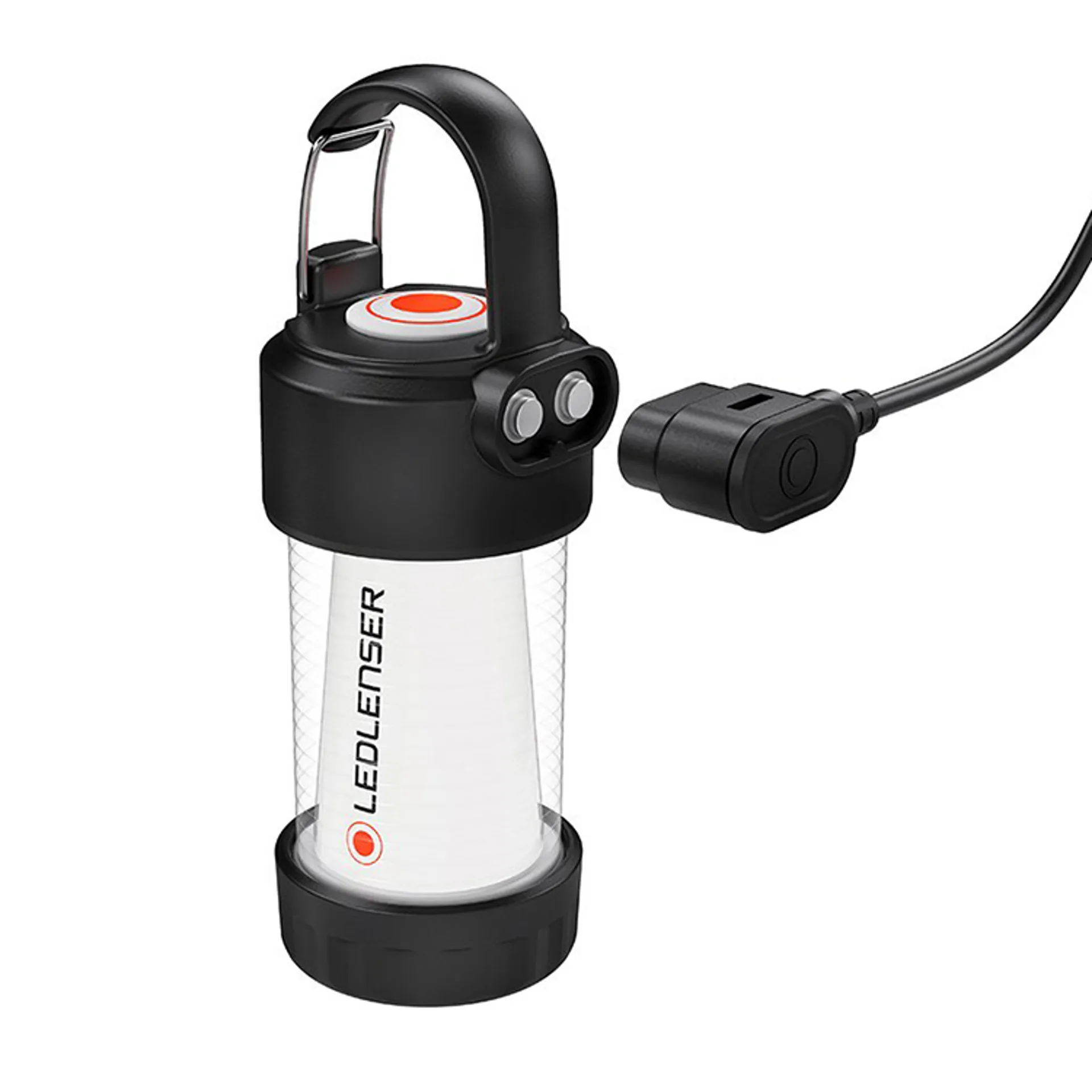

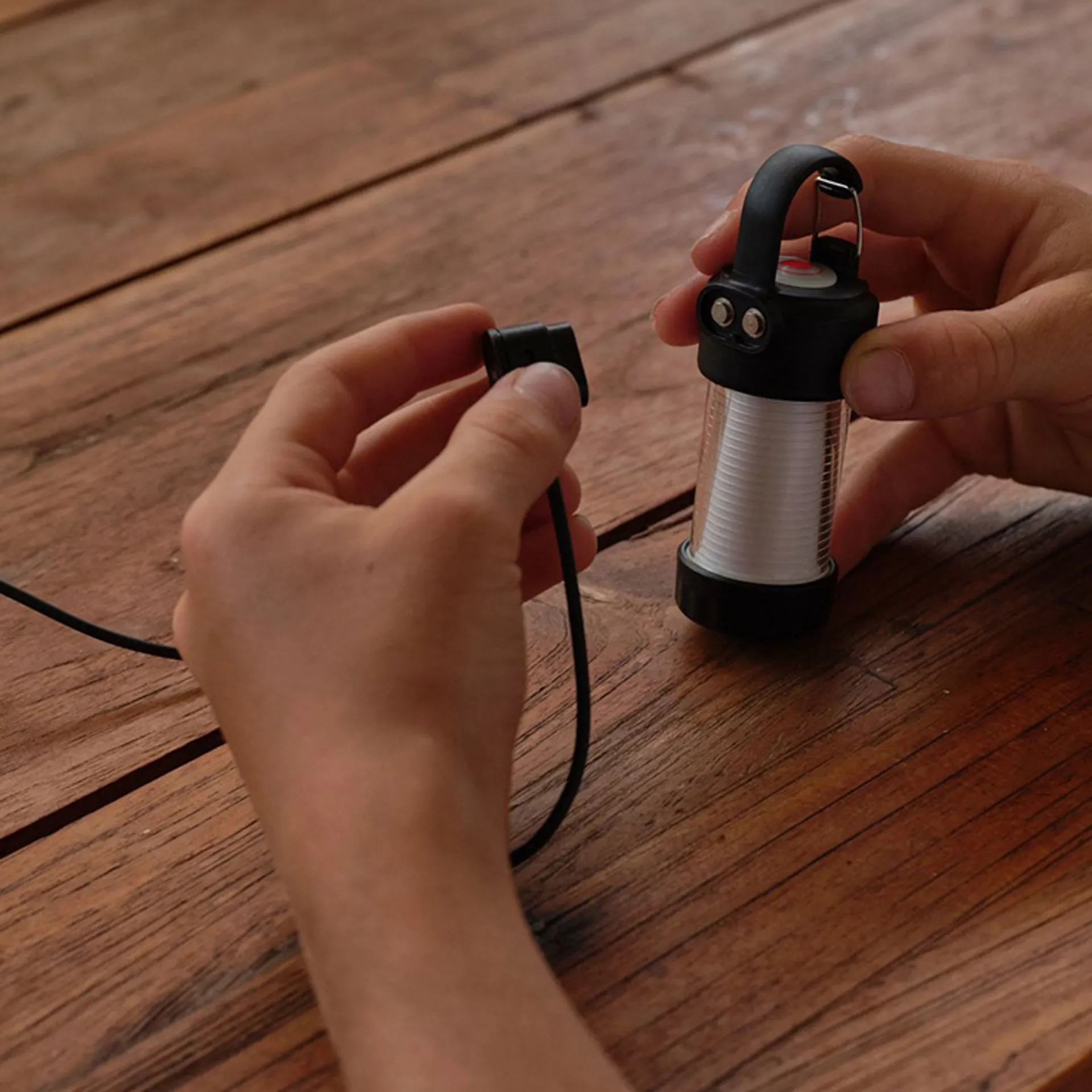

To charge the lithium-ion battery you need to connect the magnetic end of the included cable to the charging point on the side of the lantern and the standard USB at the other end plugs into a computer or compatible USB adaptor (not included). The battery indicator light will turn red to show charging is in progress and will go green once charging is complete.
The button on the top of the lantern controls all the functions of the lantern. To turn the ML4 on press the button once and the light will come on in the low white mode. If you continue to press the button within 5 seconds it will cycle from low to mid, power, blink and off. If the on in any mode for longer than 5 seconds the next press will turn the light off. The white boost output is accessed by quick pressing the button twice within 5 seconds and lasts for 30 seconds before returning to the previous output.
To change from the white mode to the red mode you hold down the button for three seconds with the light on or off. This is great for when you don't want to disturb others as it means you can directly access the red output even if you know its set to white without turning the white light on first. If the red light was the last used mode when it was turned off then the torch can just be turned back on with one press as normal as it will be remembered. Once on each press within 5 seconds will then cycle from red low to red high, red blink and off.
To prevent accidental activation the ML4 has a lockout function that is activated by holding down both the button for 5 seconds until the light flashes four times and deactivated by holding it down for 3 seconds. An LED battery indicator is built under the switch and will show green, yellow or red when the torch is turned on to indicate the battery level status.
When the lantern is first tuned on the power indicator under the button will display green, orange or red for 2 seconds to indicate the current battery level. Once the battery level becomes low and requires charging the lantern will blink four times while in use to notify the user.
Product Features
White and red light settings
Flashing modes to attract attention
Hanging hook with clip opening
Lockout function to prevent accidental activation
Magnetic charging system
Battery status indicator LED under the switch
Last used setting is remembered
Operational Modes (white output)
Low: 5 lumens; 45 hours run-time
Mid: 50 lumens; 8 hours run-time
Power: 150 lumens; 2 hours, 30 minutes run-time
Boost: 300 lumens*
Please note:*Boost is available in 30 seconds bursts to prevent the LED from overheating.
Technical Details
Type: Rechargeable LED lantern
Operating Modes: Boost / High / Mid / Low / Flash / red low / red high / red flash
Luminous Flux: Up to 300 lumens
Batteries Required: 1 x 14500 lithium-ion battery (included)
Run Time: Up to 45 hours
Weight: 71 grams (including battery)
Switch Type: Push button
Warranty: 5 years (lantern), 2 years (battery)
Regulatory Compliance: CE / RoHS
Packaging and Contents
Supplied in retail packaging and includes:
Ledlenser ML4 lantern x 1
Magnetic USB charging cable x 1
Ledlenser 14500 750 mAh lithium-ion rechargeable battery x 1
Quick guide manual x 1
